RCC REVOLUTIONISES RESIDENTIAL VENTILATION
96 ducting combinations and a compact design make the RCC perfect for homes of up to 80m2

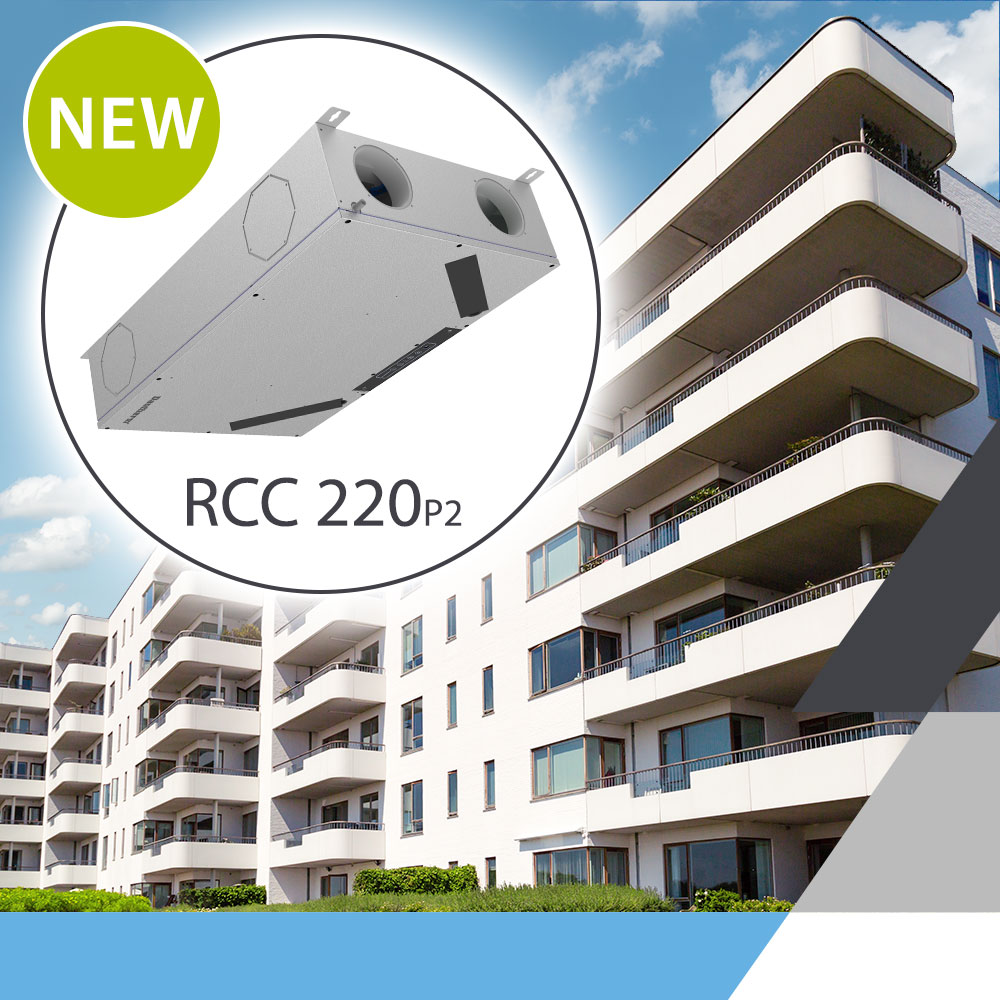

The RCC 220 is a uniquely flexible and compact residential ventilation unit for small houses and apartments. Based on an ingenious design, it is delivered as a true plug and play solution with a built-in control panel and all necessary parts for on-site installation.
Requiring just 200mm installation headroom, it is perfect for installation in suspended ceilings, on (or inside!) walls or closets. The air flows can be electronically swapped, so the same unit can be mounted with inside/outside ducts connected to either the right or left hand side as needed.

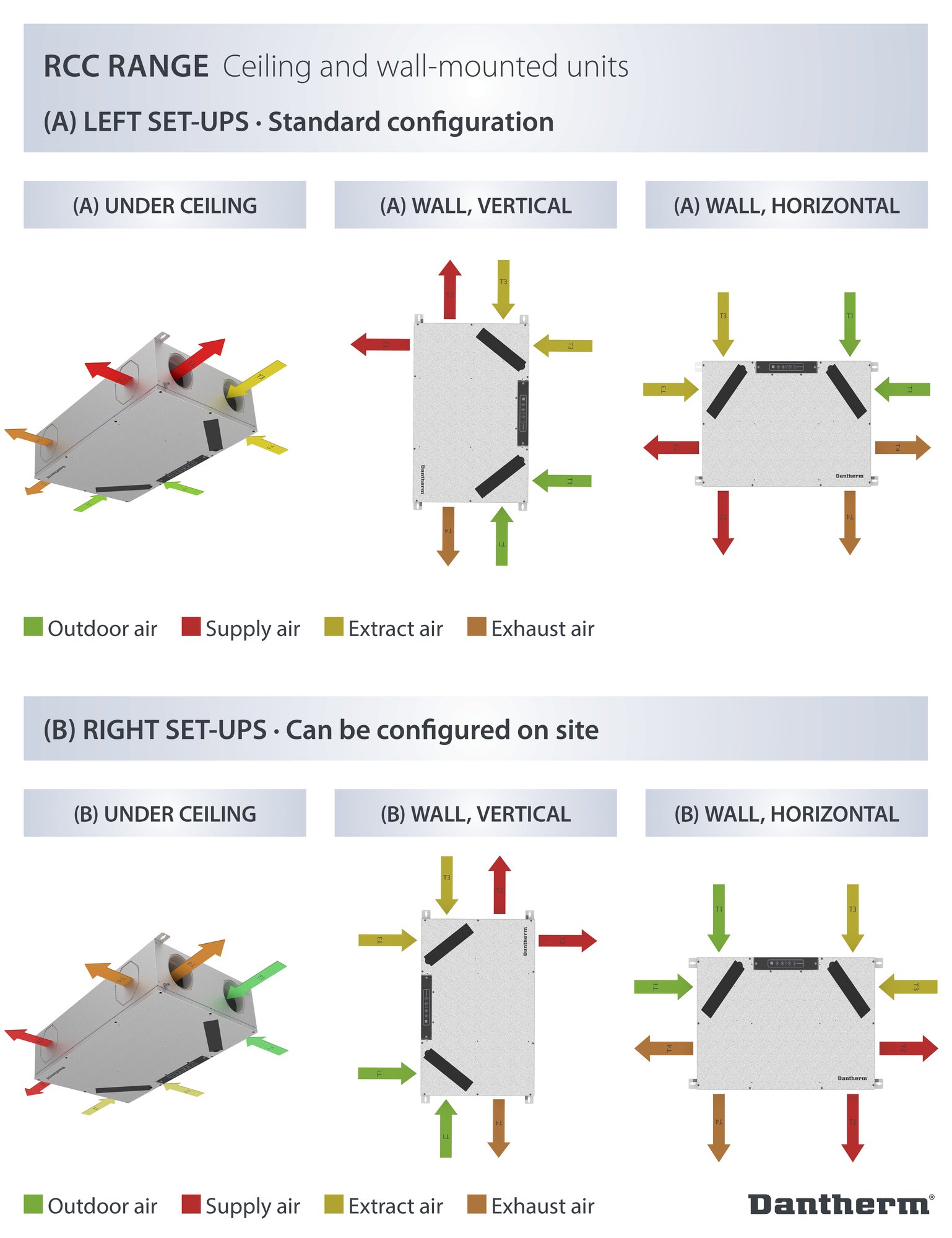

Unique to the residential ventilation market, the RCC offers a stunning 96 different ways of connecting ducts to the unit. 6 different mounting options each offering 16 duct connection combinations. (A) setups are the standard configuration, (B) can be configured on site. Check out the below illustration for more. Simply choose whatever is more practical for your installation project!
The RCC units come with a galvanised metal surface and are either delivered packaged individually one unit on a pallet in a cardboard box or in a variant packaged four units on a pallet to minimise use of packaging in consideration of the environment and to ease handling at building sites.
Prominent product features
- Demand-controlled ventilation with integrated humidity sensor, reducing power consumption at times with low ventilation demands
- Summer mode in which the supply fan is stopped to reduce power consumption. Open windows will supply cooler outside air
- Automatic free-cooling via the integrated bypass function that lets in cool night air on hot days to help maintain comfortable temperatures through the day
- High-efficiency heat recovery
- EC fan motors with extremely low energy consumption (low SPI)
- Requires no more than 200mm installation headroom
- Highly customisable units with the option to add a high variety of internal as well as external accessories
- Two humidity sensors to ease switching from left/right setup
- Prepared for easy mounting of condensate pump
